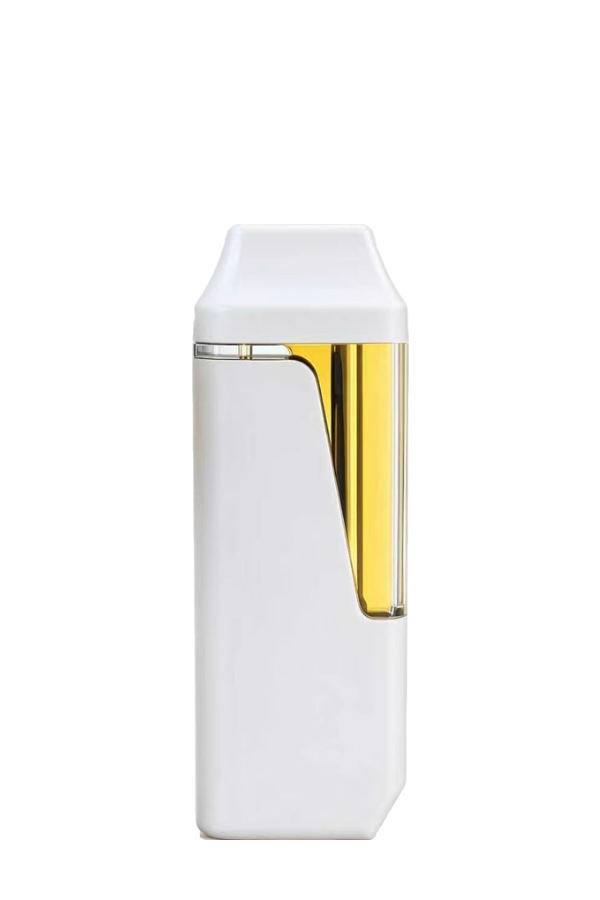

AXIS
A compact all-in-one in 1.0 mL and 2.0 mL, both at 22.1 × 12.6 × 64.2 mm.
Inhale-activated and USB-C rechargeable, with a food-grade PCTG tank behind a window that keeps the oil level in view.

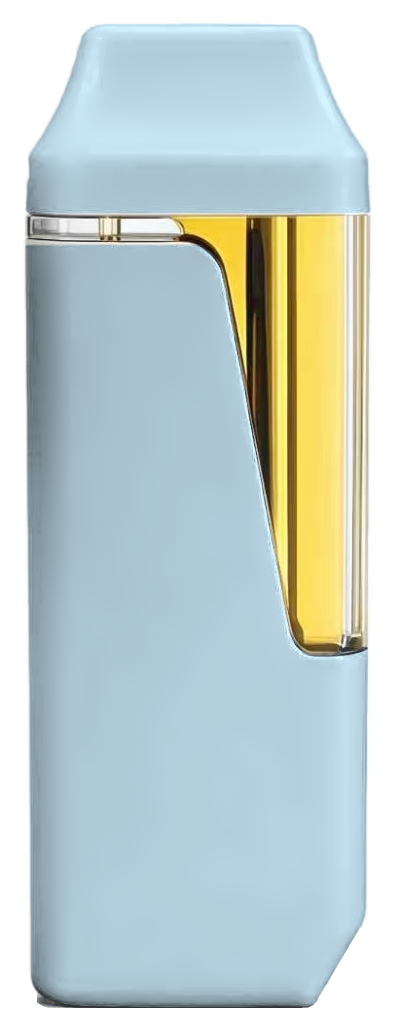

2.0 mL · Custom color shown
The engineering case.
Inhale to activate. No buttons.
22.1 × 12.6 × 64.2 mm, in both capacities.
280 mAh battery with a Type-C charging port.
A window in the housing keeps the oil level in view.
Key Specifications.
| Technical Specifications | |
|---|---|
| Tank Capacity | 1.0 mL / 2.0 mL |
| Battery Capacity | 280 mAh |
| Resistance | 1.6 Ω |
| Activation | Inhale-activated |
| Charging Port | Type-C |
| Dimensions | 22.1 × 12.6 × 64.2 mm |
| Component | Material |
|---|---|
| Tank | Food-grade PCTG |
Dimensions are confirmed for each capacity by the factory 1:1 drawings. Battery, resistance, activation, charging port and tank material are published once by the factory for both capacities; per-capacity confirmation is pending.

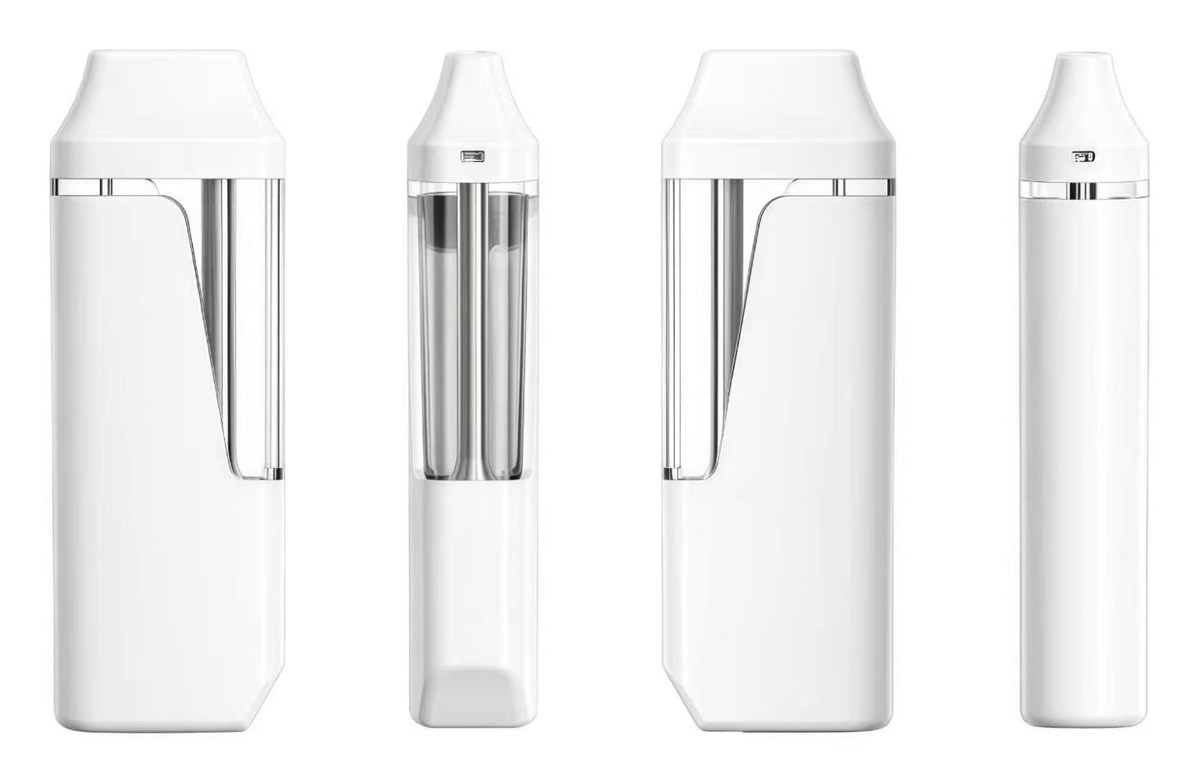

Two tanks, one footprint.
Both capacities share the same outer dimensions. The 2.0 mL carries a longer tank window and a chamfered base corner.
| AXIS 1.0 mL | AXIS 2.0 mL | |
|---|---|---|
| Tank Capacity | 1.0 mL | 2.0 mL |
| Dimensions | 22.1 × 12.6 × 64.2 mm | 22.1 × 12.6 × 64.2 mm |
| Tank Window | Shorter window | Longer window |
| Base | Square corners | Chamfered corner |
| 1:1 Drawing | Artwork guide, page 2 | Artwork guide, page 3 |
Dimensions, tank window and base come from each capacity’s factory 1:1 drawing. The factory publishes battery, resistance and the other specifications once for both capacities.
To spec.
| Device | |
|---|---|
| Dimensions | 22.1 × 12.6 × 64.2 mm |
| Tank Capacity | 1.0 mL / 2.0 mL |
| Tank Material | Food-grade PCTG |
| Power & Charging | |
|---|---|
| Battery | 280 mAh |
| Resistance | 1.6 Ω |
| Charging Port | Type-C |
| Activation | Inhale-activated |
Make it yours.
Front and back branding on a housing made in your custom color, with standard molded, soft-touch or metallic painted finishes. Artwork is placed in a provisional 19.0 × 16.8 mm print zone below the tank window on each side; the factory’s printable area is pending confirmation. Decoration method and packaging are confirmed with PROXY for your program.
