Device

Choose the tank capacity, then the housing color. Black is the stock color, with domestic printing available; any custom color can be requested as a Pantone match. The opaque snap cap matches the housing or takes its own color.

Tank capacity

1.0 mLSingle tank 2.0 mLSingle tank

Housing color

Custom color OEM REQUEST

Pick a shade Explore a color direction visually. This gives a HEX value, which is an on-screen reference, not a Pantone match.

Pantone reference IF KNOWN

Enter the official Pantone reference, not a HEX value.

On-screen color is approximate. Your confirmed Pantone reference will be used for production.

Mouthpiece

Opaque PP snap cap · match the housing color or choose a custom color

Mouthpiece Color

Match body colorUses the exact body color Customize mouthpiece colorChoose a separate color for the mouthpiece

Your Artwork

Each surface is set up independently; your original files are always submitted untouched.

You are setting up the front surface. Use the buttons above to switch.

Upload & place artworkUpload logos, graphics, or finished text artwork. Click to choose a file, or drop it here. Position it visually on the device. PNG, JPEG, or PDF · 15 MB max. No artwork on this surfaceIntentionally leave this surface undecorated.

Artwork Colors

Colors detected in the artwork you uploaded above.

Have official brand colors? Add the Pantone reference so the factory can match them precisely. This does not change your uploaded artwork.

Position Your Artwork

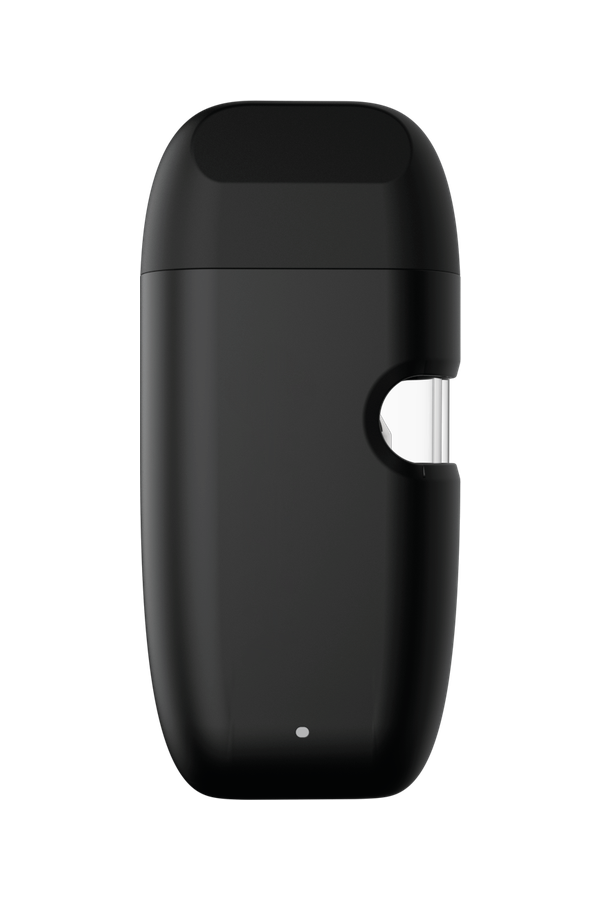

Use the Front / Back toggle above the preview to work on each surface. Drag the artwork on the device and keep it inside the marked printing area. The marked boundaries are transcribed at 1:1 from the supplier Print Range drawing.

Artwork type

Choose based on your artwork. Logos and graphics require a minimum 6 × 6 mm size; text-only artwork can be as small as 1 × 1 mm.

Size

Rotation

Position from zone center

Artwork must remain fully inside the printable area.

Artwork cannot overlap the window notch.

Artwork covers the LED indicator dot. The supplier drawing marks no LED keepout; PROXY will confirm placement with the factory.

Artwork must be at least 6 mm wide and 6 mm tall when printed.

Low-resolution artworkThis file may not reproduce cleanly at the selected size. A higher-resolution or vector file is recommended.

Finish & Printing

Choose how your ARC should be printed and finished. These apply to the whole device.

Printing method No PrintingUndecorated device UV PrintFull-color, high-resolution graphics Silk ScreenClean, crisp logos and text

Surface finish

Finish selections are recorded in your specification and are not simulated in the preview. Housing: opaque PC+ABS.

Standard Molded ColorColor molded directly into the housing for a clean, durable factory finish. Soft-Touch Painted FinishSoft, rubberized coating with a smooth hand feel and added grip. Metallic Painted FinishMetallic paint with a bright, reflective sheen.

Review & Submit

Check your configuration. Submitting sends PROXY a factory-ready branding specification for this build.
