ZIRCONIA
Premium zirconia ceramic cartridges engineered for the cleanest, most consistent vapor experience.
Every element in the oil path is ceramic or glass: zero metal contact with your oil.
Customize the Zirconia Series.
White (standard zirconia finish)
Master configuration shown. Your selected build is specified below and quoted exactly.
The engineering case.
Greater toughness and resistance to cracking than conventional ceramic.
High fracture toughness tolerates the thermal stress of heating and cooling in use.
Trusted in demanding technical applications, including uses such as dental implants.
Only zirconia ceramic and glass touch the oil.
Nothing touches your oil but ceramic and glass.

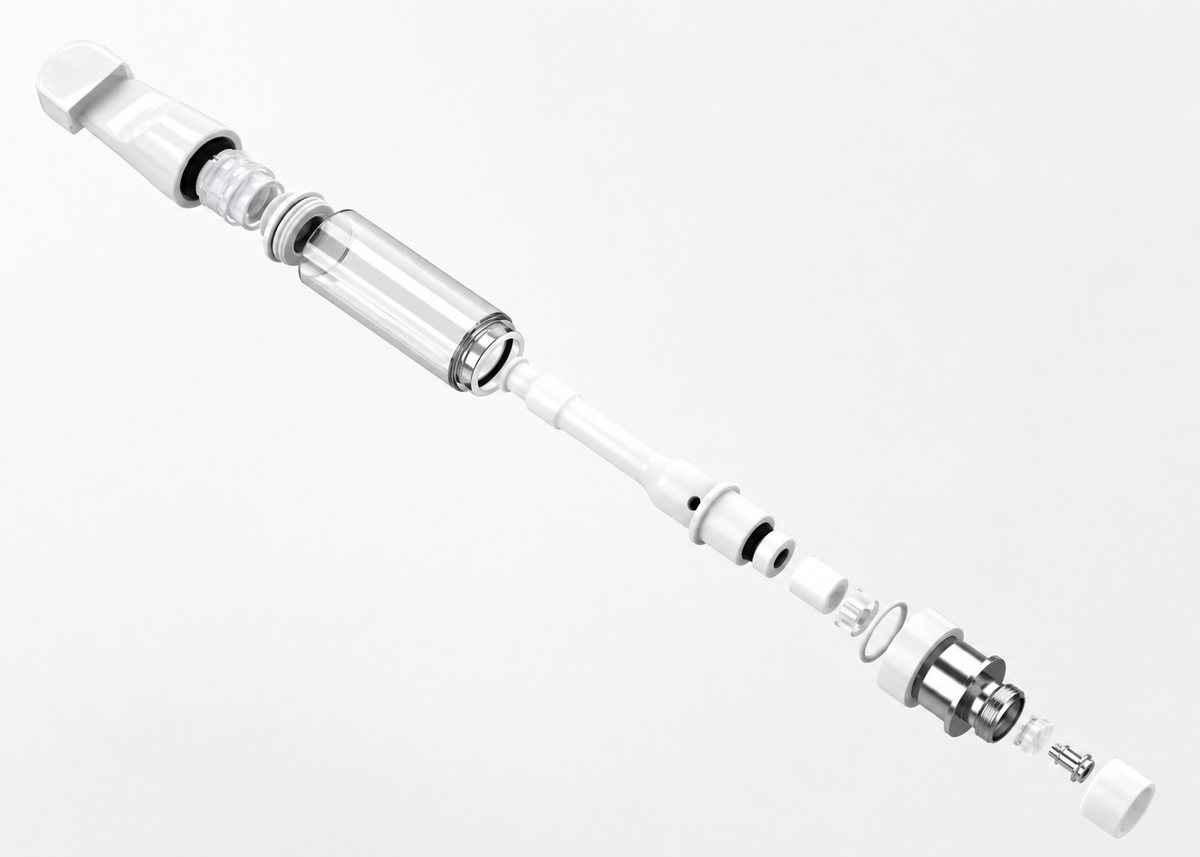

Every element in the oil path is ceramic or glass. See the component stack, exploded.
Seven-component assembly. Every oil-contact surface is zirconia ceramic or glass; the nickel-plated copper base and center pin sit outside the oil path. FeCrAl heating coil embedded in a zirconia core. Side airflow through 3 × 1.8 mm inlets.
Ø11 × 60 ± 0.25 mm · 10.6–10.8 g · 1.2–1.6 Ω standard (1.4–2.0 Ω optional) · 510 thread- 1MouthpieceCeramic (Zirconia)
Press or screw fit. White standard finish.
- 2SealsSilicone
Isolates the reservoir at mouthpiece and base interfaces.
- 3ReservoirGlass
1.0 mL capacity. Chemically inert; full oil visibility.
- 4Center PostCeramic (Zirconia)
Central airway column; ceramic through the full oil zone.
- 5Air InletCeramic (Zirconia)
Side airflow entry; 3 × 1.8 mm oil inlet ports.
- 6Heating CoreCeramic (Zirconia), FeCrAl Coil
Coil embedded in zirconia. 1.2–1.6 Ω standard.
- 7Base & Center PinCopper, Nickel-Plated
510 electrical connection, outside the oil path.
Key Specifications.
| Technical Specifications | |
|---|---|
| Capacity | 1.0 mL |
| Resistance | 1.2–1.6 Ω (Std) / 1.4–2.0 Ω (Opt) |
| Puff Count | 130–150 (Expected) |
| Airflow | Side Airflow |
| Inlet Holes | 3 × 1.8 mm Oil Inlet Holes |
| Connection | 510 Thread |
| Mouthpiece Style | Press Fit or Screw Fit |
| Size / Weight | Ø11 × 60 ± 0.25 mm · 10.6–10.8 g |
| OEM / ODM | Available |
| Component | Material |
|---|---|
| Mouthpiece | Ceramic (Zirconia) |
| Reservoir | Glass |
| Center Post | Ceramic (Zirconia) |
| Heating Core | Ceramic (Zirconia), FeCrAl Coil |
| Air Inlet | Ceramic (Zirconia) |
| Base | Copper, Nickel-Plated |
| Center Pin | Copper, Nickel-Plated |
| Seals | Silicone |
Packed for production.
100 oil cups + 100 mouthpieces
10 boxes · 39×47×22 cm · 13.2 kg
20 ± 5 °C, 30–70% RH · 12 months
To spec.
| Cartridge | |
|---|---|
| Height | 60 ± 0.25 mm |
| Diameter | Ø11 mm |
| Capacity | 1.0 mL |
| Weight | 10.6–10.8 g |
| Mouthpiece | Fit | Color |
|---|---|---|
| Ceramic (Zirconia) | Press Fit or Screw Fit | White |
Make it yours.
Custom resistance, aperture, mouthpiece, and branding options, engineered to complement your extracts and carry your brand, with packaging delivered from the same supplier.
Solving a different problem?
Judge it in your hands.
Request Zirconia Series samples in your exact build. A PROXY representative will follow up to confirm your selection and provide shipment details.
