ZIRCONIA
A top-fill 510 cartridge pairing a borosilicate glass tank with a ceramic mouthpiece and a zirconia ceramic air stem.
Available in 0.5 g and 1.0 g, with a 1.30–1.60 Ω NiCr heating element and a ceramic or non-woven plant fiber wick.
Customize Zirconia, Ux Series.
White
Printed artwork on the glass tank.

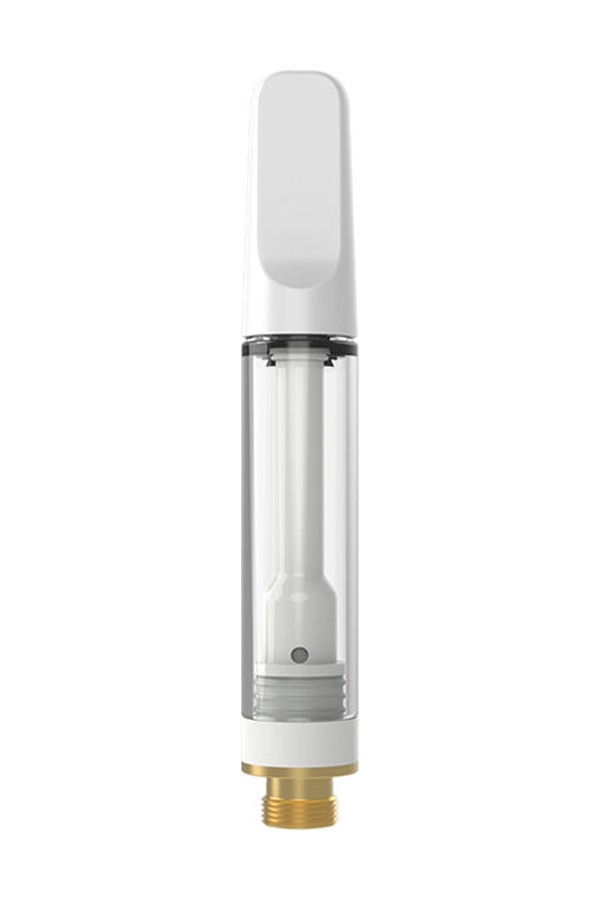

Shown with the gold connector. Your selected build is specified below and quoted exactly.
What’s in the build.
Zirconia ceramic air stem and ceramic mouthpiece with a borosilicate glass tank.
Brand the glass tank with printed artwork.
Cap within 0.5–1.0 min of filling to avoid flooding the air stem.
CE and RoHS safety certifications.
Key Specifications.
| Technical Specifications | |
|---|---|
| Liquid Capacity | 0.5 g / 1.0 g |
| Intake Hole Size | 1.5 mm |
| Resistance | 1.30–1.60 Ω |
| Heating Element | NiCr + Lead Wire |
| Wick Material | Ceramic / Non-Woven Plant Fiber |
| Thread | 510-Thread |
| Connector Finish | Gold or Silver |
| Filling Method | Top Fill |
| Fill & Cap Timing | 0.5–1.0 min max |
| Certifications | CE, RoHS |
| Customization | Printed Artwork on Glass Tank |
| Component | Material |
|---|---|
| Tank Body | Borosilicate Glass |
| Air Stem | Zirconia Ceramic |
| Mouthpiece | Ceramic + PCTG TX1501 |
| Heating Element | Nickel-Chromium (NiCr) |
| Wick | Ceramic / Non-Woven Plant Fiber |
Packed for production.
200 cartridges + 200 mouthpieces per box · 50-cavity trays · 365 × 175 × 90 mm
6 boxes per carton (1,200 + 1,200) · 385 × 380 × 302 mm
Approx. 14.7 kg (0.5 g) · approx. 16.4 kg (1.0 g)
To spec.
| Cartridge | 0.5 g | 1.0 g |
|---|---|---|
| Assembled Height | 57.4 mm | 68.4 mm |
| Cartridge Height | 39.6 mm | 50.6 mm |
| Diameter | 10.6 mm | 10.6 mm |
| Cartridge Weight | 6.6 ± 0.2 g | 8.0 ± 0.2 g |
| Mouthpiece | Dimensions | Weight |
|---|---|---|
| Tapered Flat · Easy Press · White | 10.5 (D) × 26.8 mm (L) | 3.6 ± 0.2 g |
Cartridge height and weight exclude mouthpiece.
Your artwork on the glass.
Zirconia, Ux Series is customized with printed artwork on the glass tank.

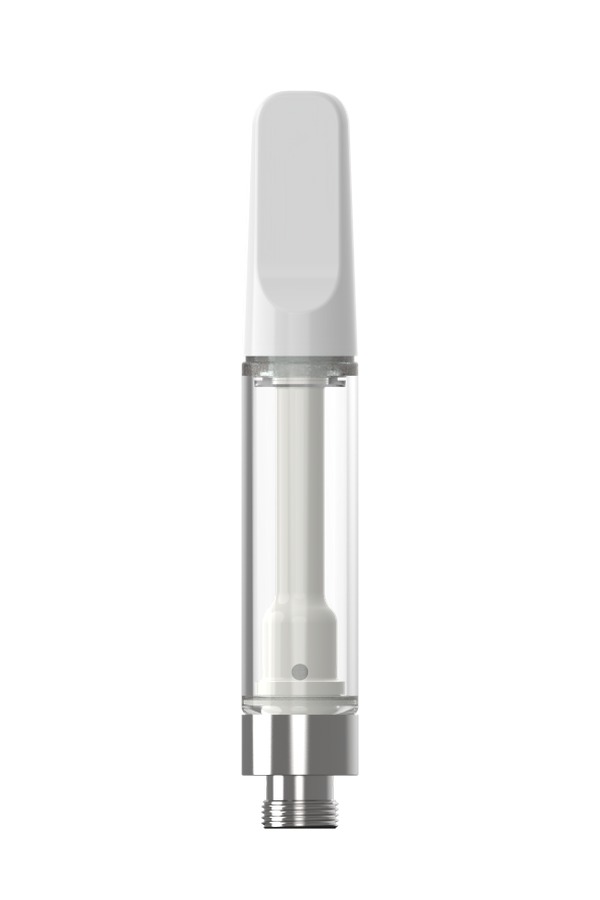

Other ceramic options.
Judge it in your hands.
Request Zirconia, Ux Series samples in your exact build. A PROXY representative will follow up to confirm your selection and provide shipment details.
