THERMOPLASTIC
Premium thermoplastic cartridges engineered for reliable, consistent vapor at the most accessible price point.
Ceramic-core heating, broad filling compatibility, and full OEM customization for your brand.
Customize Thermoplastic Artwork.
Set up your branded Thermoplastic cartridge in four guided steps: choose the hardware, wrap and place the printable body, decorate the upper and lower bands, and submit. No dieline experience needed.

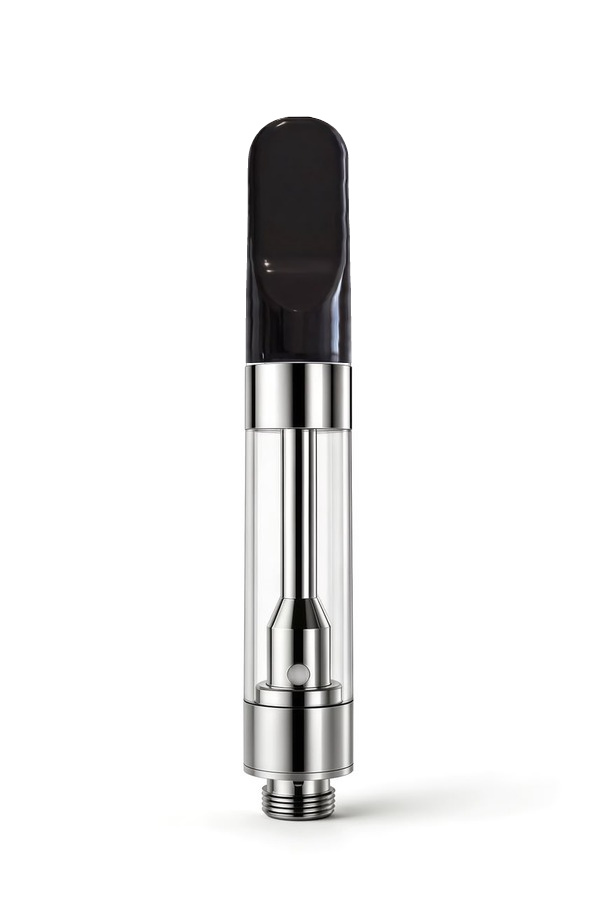

Master configuration shown. Your selected build is specified below and quoted exactly.
Hardware
Capacity, mouthpiece, color and fit. The cartridge on the left updates as you choose.
Capacity
Mouthpiece
Mouthpiece Color
Enter the official Pantone reference, not a HEX value. It is what production is matched to.
The cartridge above is tinted to your color on screen. No photograph exists of a Thermoplastic mouthpiece in your Pantone, so the tint is applied to the approved neutral render of this hardware: it carries the real shading, but it is a screen approximation, shown opaque. Your Pantone reference is what production is matched to, and PROXY confirms the finish of a custom mouthpiece with you.
Fit
Body Artwork
How placement works
Size, rotate and place the selected artwork with the controls, or choose Move artwork and drag it on the cartridge. Drag the preview to look around the cartridge. The wrap is 33.00 mm around and meets itself at a seam at the back. Keep logos and type clear of the seam.
Bands
Two independent metal bands, each 33.00 × 6.00 mm: the Upper Band under the mouthpiece and the Lower Band at the base. Choose a band, then its color, artwork and application method.
Review
Read back from the build you configured. Check it, then choose how to send it to PROXY.
Review your configuration, then submit your request below. Everything you chose is read back here. When it looks right, add your details and send it to PROXY.
The brand names the project folder PROXY creates for this build. Your name and email are how PROXY replies.
Submission received.
The engineering case.
Top quality thermoplastic and 316L medical-grade stainless steel components.
Open top fill format, compatible with most filling machines.
Engineered for clean, consistent vapor and enhanced flavor delivery.
Uniform press-fit assembly and open-top filling, consistent across the full production run.
See inside the Thermoplastic Series.
Seven components, five materials, one job: move oil to vapor cleanly, every pull.
Oil is held in the reservoir surrounding the central airway. On draw, it feeds through the intake ports into the ceramic core, where the embedded heating element vaporizes it at the coil face. Vapor rises up the airway and out the mouthpiece. Select a component to inspect its material and function.
Key Specifications.
| Technical Specifications | |
|---|---|
| Max Fill Volume | 1.0 mL |
| Standard Intake Hole Size | 2.0 mm |
| Resistance | 1.4 Ω |
| Thread | 510-Thread |
| Filling Method | Open Top Fill |
| Mouthpiece Style | Press Fit |
| Compatibility | Most Filling Machines |
| Customization | Resistance, Aperture, Branding |
| Component | Material |
|---|---|
| Housing | Thermoplastic |
| Atomizer Shell | Stainless Steel |
| Airway Tube | Stainless Steel |
| Core | Ceramic |
| Heating Element | NiCr |
| Sealing Ring | Silicone |
| Thread Connection | 316L Stainless Steel |
Packed for production.
Packed in boxes of 100 units
20 boxes per master carton
200 units/box · 10 master cartons
To spec.
| Cartridge | |
|---|---|
| Height | 67.8 mm |
| Diameter | 11 mm |
| Capacity | 1.0 mL |
| Weight | 6.3 g |
| Mouthpiece | Dimensions | Weight |
|---|---|---|
| Plastic Round | 10.65 (D) × 17 mm (L) | 1.3 g |
| Plastic Flat | 10.5 (D) × 25.53 mm (L) | 1.5 g |
Make it yours.
Custom resistance, aperture, mouthpiece, and branding options, engineered to complement your extracts and carry your brand, with packaging delivered from the same supplier.
Solving a different problem?
Judge it in your hands.
Request Thermoplastic Series samples in your exact build. A PROXY representative will follow up to confirm your selection and provide shipment details.
