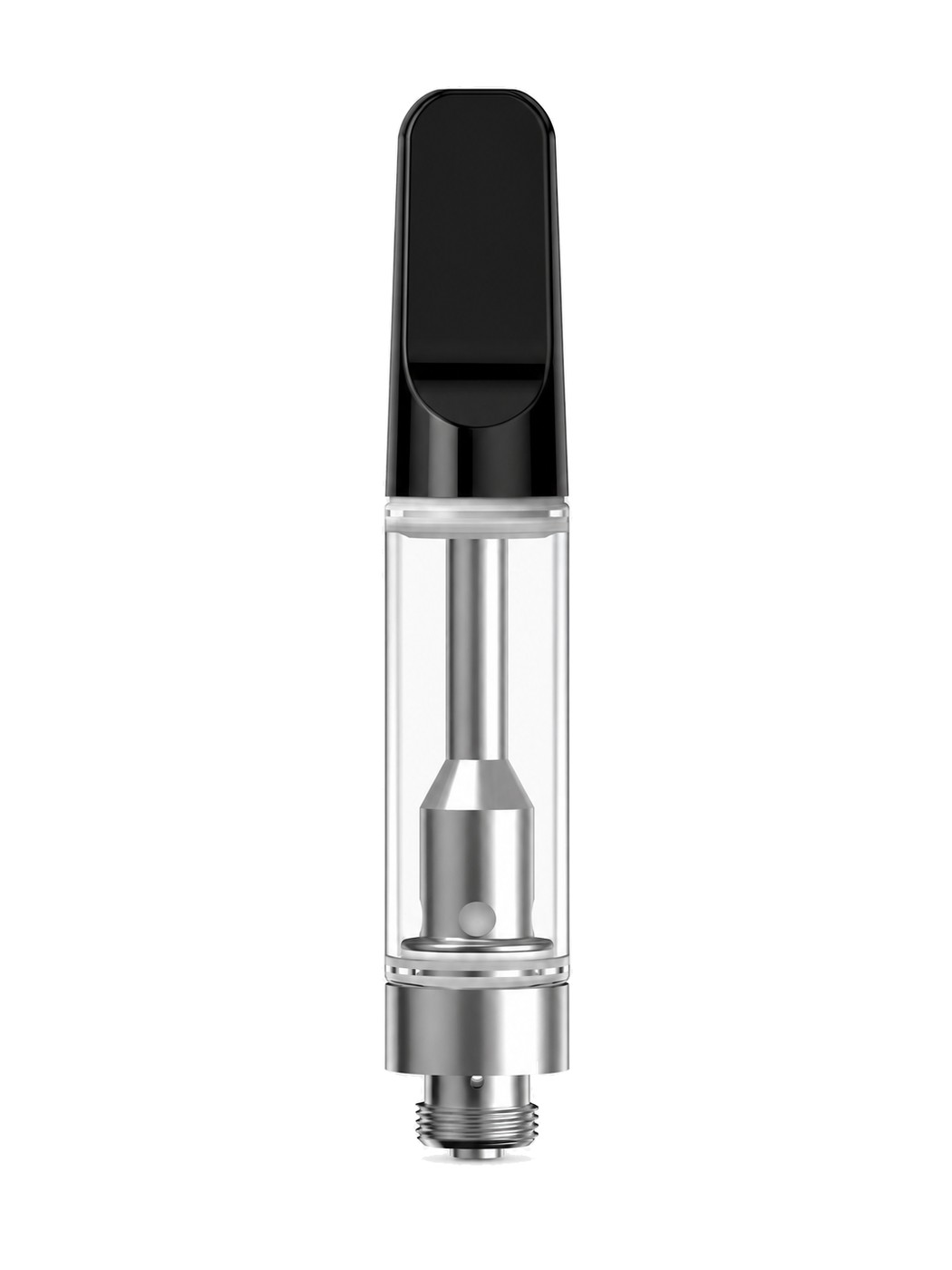

GLASS
Premium borosilicate glass cartridges engineered for consistent vapor production and long-term reliability.
Designed for clean flavor, broad oil compatibility, and OEM customization for your brand. The Glass Series has completed independent third-party laboratory testing. Report details are available on request.
Customize Glass Artwork.
Set up your branded Glass cartridge in four guided steps: choose the hardware, wrap and place the printable body, decorate the collar, and submit. No dieline experience needed.
Master configuration shown. Your selected build is specified below and quoted exactly.
Hardware
Capacity, mouthpiece, color and fit. The cartridge on the left updates as you choose.
Capacity
Mouthpiece
Mouthpiece Color
Enter the official Pantone reference, not a HEX value. It is what production is matched to.
The cartridge above is tinted to your color on screen. No photograph exists of a Glass mouthpiece in your Pantone, so the tint is applied to the approved neutral render of this hardware rather than a new render being invented: it carries the real shading and, on a translucent treatment, the real translucency, but it is a screen approximation. Your Pantone reference is what production is matched to.
Fit
Body Artwork
How placement works
Size, rotate and place the selected artwork with the controls, or choose Move artwork and drag it on the cartridge. Drag the preview to look around the cartridge. The wrap is 33.3 mm around and meets itself at a seam at the back.
Collar
Review
Read back from the build you configured. Check it, then choose how to send it to PROXY.
Review your configuration, then submit your request below. Everything you chose is read back here. When it looks right, add your details and send it to PROXY.
The brand names the project folder PROXY creates for this build. Your name and email are how PROXY replies.
Submission received.
The engineering case.
Borosilicate glass, food-grade ceramic, and 316L medical-grade stainless steel. Independently lab-tested, the only cartridge platform in the catalog with third-party verification.
Open top fill format, compatible with most filling machines.
Engineered for clean, consistent vapor and enhanced flavor delivery.
Customizable resistance and aperture sizes to complement unique extracts.
See inside the Glass Series.
Seven components, five materials, one job: move oil to vapor cleanly, every pull.
Oil is held in the reservoir surrounding the central airway. On draw, it feeds through the intake ports into the ceramic core, where the embedded heating element vaporizes it at the coil face. Vapor rises up the airway and out the mouthpiece. Select a component to inspect its material and function.
Key Specifications.
| Technical Specifications | |
|---|---|
| Max Fill Volume | 0.5 mL / 1.0 mL |
| Standard Intake Hole Size | 2.0 mm |
| Resistance | 1.4 Ω |
| Thread | 510-Thread |
| Filling Method | Open Top Fill |
| Mouthpiece Style | Snap Fit or Screw Fit |
| Compatibility | Most Filling Machines |
| Customization | Resistance, Aperture, Branding |
| Component | Material |
|---|---|
| Housing | Glass |
| Atomizer Shell | Stainless Steel |
| Airway Tube | Stainless Steel |
| Core | Ceramic |
| Heating Element | NiCr |
| Sealing Ring | Silicone |
| Thread Connection | 316L Stainless Steel |
| Cartridge | |
|---|---|
| Diameter | 10.6 mm |
| Capacity | 0.5 mL / 1.0 mL |
| Wrap print area (1.0 mL) | 26 mm tall × 33.3 mm around |
| Wrap print area (0.5 mL) | 17 mm tall × 33.3 mm around |
| Metal band | 5 mm |
| Weight | 5.2 g / 6.7 g |
| Mouthpiece | Dimensions | Weight |
|---|---|---|
| Ceramic | 10.5 (D) × 26.55 mm (L) | 4 g |
| Plastic Round | 10.65 (D) × 17 mm (L) | 1.3 g |
| Plastic Flat | 10.5 (D) × 25.53 mm (L) | 1.5 g |
Cartridge dimensions and print areas are taken from the approved factory dieline. Overall assembled height depends on which mouthpiece is fitted, so it is stated on the production drawing for the configuration you order rather than as a single figure here.
Packed for production.
Packed in boxes of 100 units
20 boxes per carton · 2,000 cartridges
200 units/box · 10 master cartons
Custom branded packaging, delivered from the same supplier
Make it yours.
Branding · Custom Colors · Resistance · Aperture · Mouthpiece Options · Dedicated OEM Support
Solving a different problem?
Judge it in your hands.
Request Glass Series samples in your exact build. A PROXY representative will follow up to confirm your selection and provide shipment details.
